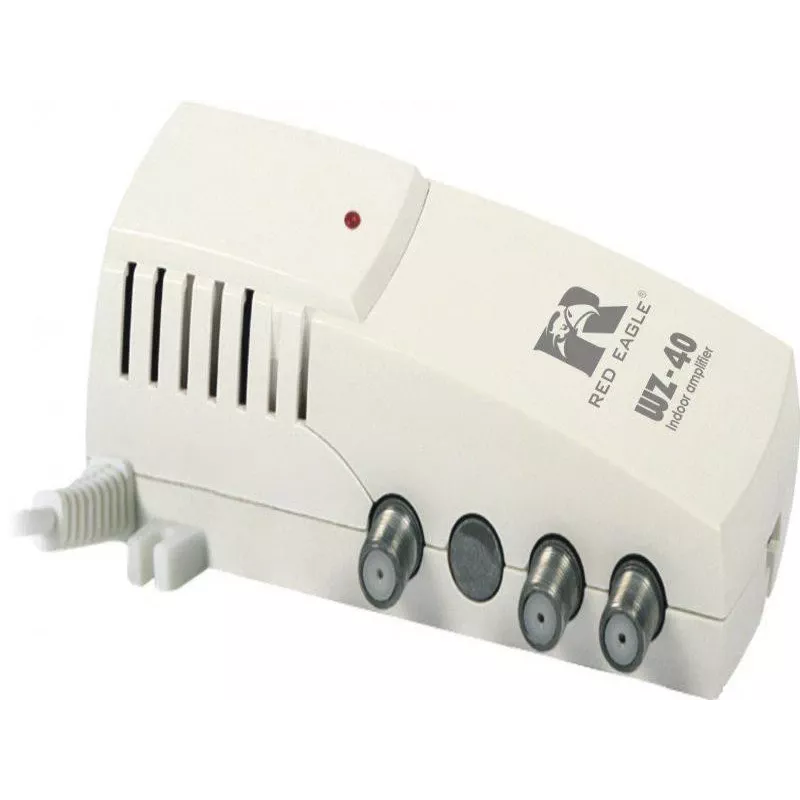

Ojačevalnik antene DVB-T/T2 WZ-40 RED EAGLE

The RED EAGLE WZ-40 is a high-performance DVB-T/T2 antenna amplifier designed to enhance weak TV signals for clear reception of digital terrestrial television. Ideal for indoor use, this compact amplifier boosts UHF and VHF signals with a gain of 22 dB, ensuring stable reception even in challenging environments. Its metal housing provides excellent shielding against interference, while the F-type connectors ensure reliable signal transmission. Compatible with DVB-T, DVB-T2, DAB+, and FM, the WZ-40 is a versatile solution for improving your TV and radio experience.

Advantages

With its low noise figure of less than 3 dB, the WZ-40 minimizes signal degradation, delivering a clean and strong output. The amplifier supports phantom power via the coaxial cable (5-12V DC), simplifying installation by eliminating the need for a separate power cable near the antenna. Its wide frequency range (47-790 MHz) covers all VHF and UHF bands, making it suitable for various broadcasting standards.

Suitable for

• Indoor TV antenna systems requiring signal boost
• DVB-T and DVB-T2 digital terrestrial television
• DAB+ digital radio and FM radio reception
• Weak signal areas where antenna placement is limited

Key specifications

• Product Type: DVB-T/T2 Antenna Amplifier
• Frequency Range: 47 - 790 MHz (VHF/UHF)
• Gain: 22 dB (±2 dB)
• Noise Figure: < 3 dB
• Input/Output Impedance: 75 Ohm
• Number of Inputs/Outputs: 1 each
• Connector Type: F-type
• Power Supply: 5-12V DC (Phantom Power)
• Max Output Level: 100 dBµV
• Compatibility: DVB-T, DVB-T2, DAB+, FM
• Application: Indoor
• Housing Material: Metal
• Shielding Effectiveness: High
• Return Loss: > 10 dB

Recommendations

For optimal performance, ensure the amplifier is placed as close to the antenna as possible and use high-quality coaxial cables with F-type connectors. The WZ-40 is designed for indoor use only; avoid exposure to moisture or extreme temperatures. If you experience signal overload, consider using an attenuator to prevent distortion.
