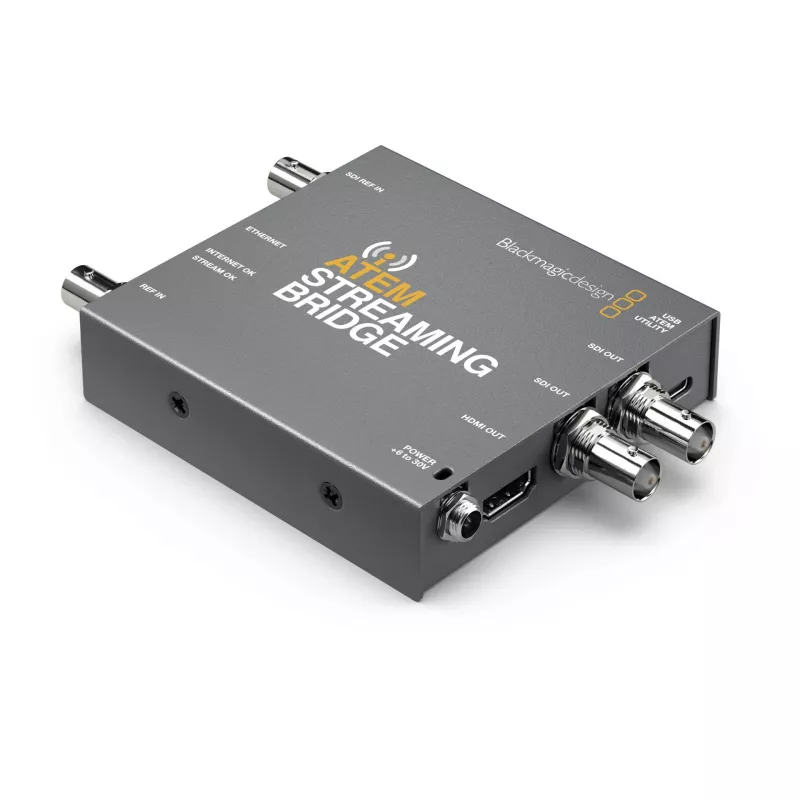

Blackmagic Design ATEM Streaming Bridge

The Blackmagic Design ATEM Streaming Bridge is a compact, professional-grade decoder that receives H.264 video streams from ATEM Mini Pro and ATEM Mini Pro ISO switchers over the internet or a local network. It converts the stream back into HDMI and SDI video outputs, enabling seamless integration into any production environment. With ultra-low latency decoding and support for up to 1080p60 video, this device is ideal for live streaming, remote production, and multi-site distribution.

Advantages

Ultra-low latency decoding ensures real-time video delivery. Compact desktop form factor fits easily into any setup. Dual output options (HDMI and 3G-SDI) provide flexibility for connecting to monitors, projectors, or broadcast equipment. Power over Ethernet (PoE) simplifies cabling, while USB-C configuration makes setup quick and easy. Compatible with the latest operating systems for hassle-free integration.

Suitable for

• Live event production and broadcasting
• Remote education and corporate presentations
• Multi-site video distribution
• Integration with ATEM Mini Pro and ATEM Mini Pro ISO switchers

Key specifications

• Input Interface: 1 x Ethernet (RJ45)
• Output Interfaces: 1 x HDMI Type A, 1 x 3G-SDI
• Video Output Formats: 1080p23.98/24/25/29.97/30/50/59.94/60, 1080i50/59.94, 720p50/59.94/60
• Video Codec: H.264
• Audio Codec: AAC
• Decoding Protocol: Blackmagic Design Custom Streaming Protocol
• Control Interface: 1 x USB-C (for configuration)
• Power Input: USB-C (5V DC) or Power over Ethernet (PoE)
• Power Consumption: 6W
• Ethernet Speed: 10/100/1000 BaseT (Gigabit Ethernet)
• Operating System Compatibility: macOS 10.15 Catalina or later, Windows 10 (64-bit)
• Form Factor: Compact Desktop
• Firmware Upgrade: Via USB-C port

Recommendations

For optimal performance, use with ATEM Mini Pro or ATEM Mini Pro ISO switchers and a stable Gigabit Ethernet connection. Ensure your network supports PoE if using that power option. The device is designed for professional use and delivers reliable, low-latency streaming.
