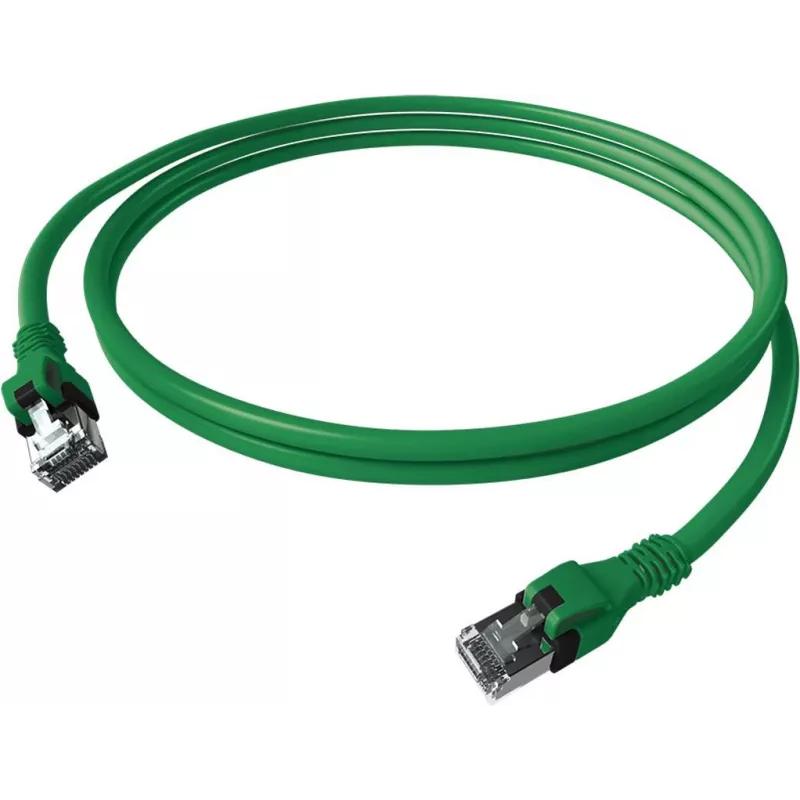

EasyLan DualBoot Push patch kabel Cat.6A S/FTP zelen 7,5m

The EasyLan DualBoot Push Patch Cable Cat.6A S/FTP Green 7.5m is a high-performance network cable designed for reliable 10 Gigabit Ethernet connections. With its robust S/FTP shielding and innovative DualBoot Push connector, this cable ensures excellent signal integrity and easy installation in demanding environments.

Advantages

This patch cable offers superior protection against electromagnetic interference (EMI) and crosstalk thanks to its S/FTP (Screened/Foiled Twisted Pair) construction. The DualBoot Push mechanism provides a secure connection and easy release, making it ideal for high-density patching areas. The LSZH (Low Smoke Zero Halogen) jacket enhances safety in case of fire, reducing toxic fumes and smoke.

Suitable for

• Data centers and server rooms requiring high-speed, reliable connections
• Enterprise networks where signal integrity is critical
• PoE applications including PoE, PoE+, and 4PPoE (IEEE 802.3af/at/bt)
• Backward compatible with Cat.6, Cat.5e, and Cat.5 networks

Key specifications

• Category: Cat.6A (Class EA)
• Shielding: S/FTP (PiMF)
• Connector: RJ45 with DualBoot Push-pull boot
• Length: 7.5 m
• Colour: Green
• Conductor: Stranded copper, AWG 26/7
• Jacket: LSZH, halogen-free, flame retardant (IEC 60332-1-2)
• Bandwidth: 500 MHz
• Data transfer rate: Up to 10 Gbps (10GBASE-T)
• Wiring standard: TIA/EIA 568B
• Contact plating: Gold-plated 50µ"

Recommendations

For optimal performance, pair this cable with Cat.6A compatible switches and patch panels. Ensure proper cable management to maintain bend radius and avoid signal degradation.
