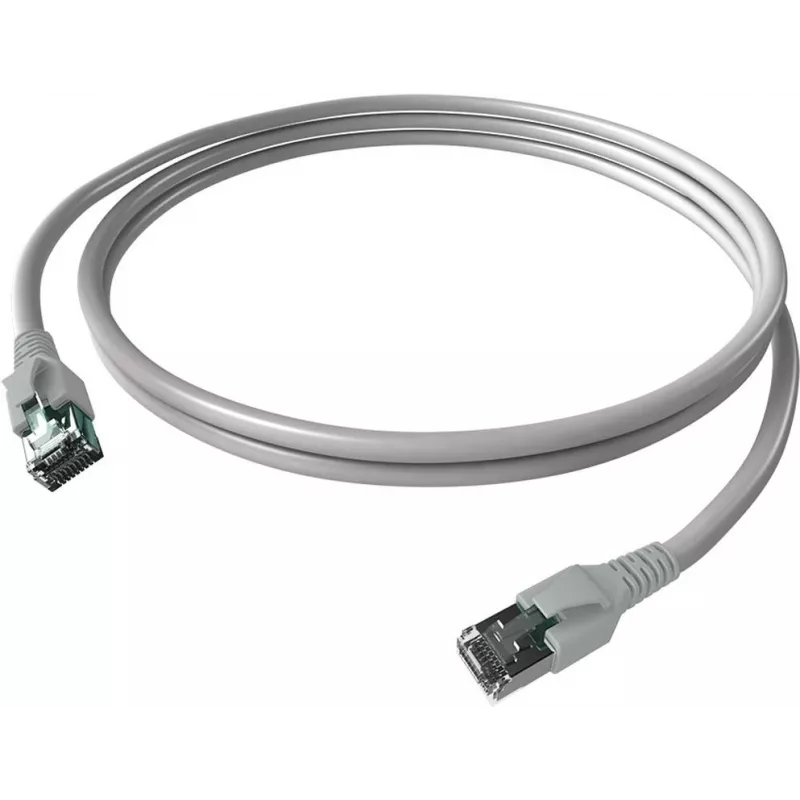

EasyLan FlexBoot patch kabel Cat.6A S/FTP siv 10m

The EasyLan FlexBoot Patch Cable Cat.6A S/FTP in grey, 10 meters, is a high-performance network cable designed for reliable 10 Gigabit Ethernet connections. With its snagless FlexBoot design and S/FTP shielding, it ensures minimal interference and maximum durability in demanding environments.

Advantages

This patch cable offers superior protection against electromagnetic interference (EMI) thanks to its S/FTP (Screened Foiled Twisted Pair) construction, which combines an overall braid and individual pair foil. The FlexBoot provides bend protection and prevents snagging during installation, extending the cable's lifespan. It is halogen-free and flame retardant, making it safe for use in public and commercial spaces.

Suitable for

• Data centers and server rooms requiring high-speed, reliable connections
• Enterprise networks needing Cat.6A performance for 10GBASE-T
• Structured cabling systems where EMI protection is critical
• Applications demanding low smoke zero halogen (LSZH) materials for safety

Key specifications

• Cable Type: S/FTP (PiMF)
• Category: Cat.6A
• Length: 10 m
• Color: Grey
• Connector Type: RJ45 Male to RJ45 Male
• Shielding: Yes (Overall braid and individual pair foil)
• Boot Type: FlexBoot (Snagless, Bend Protection)
• Conductor Material: Copper (Cu)
• Conductor Gauge: AWG 27/7 (Stranded)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Wiring Standard: 1:1 Straight-Through (TIA/EIA-568B)
• Max Bandwidth: 250 MHz
• Max Data Rate: 10 Gigabit Ethernet (10GBASE-T)
• Halogen-free: Yes
• Flame Retardant: Yes (IEC 60332-1-2)
• Operating Temperature: -20°C to +60°C

Recommendations

For optimal performance, pair this cable with compatible Cat.6A or higher networking equipment. Ensure proper cable management to avoid kinks and maintain signal integrity.
