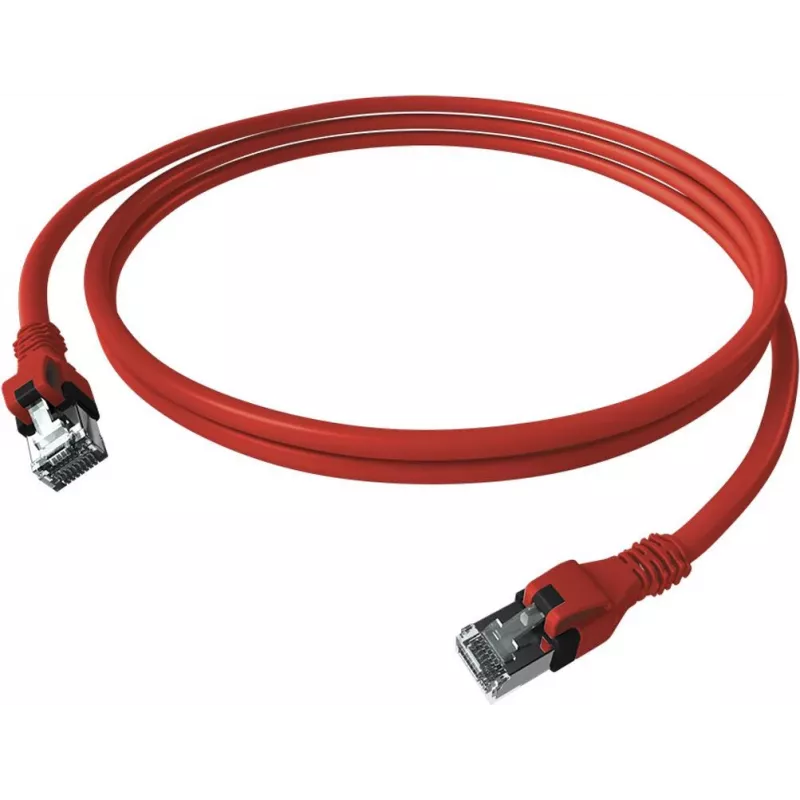

EasyLan saCon DualBoot patch kabel S/FTP rdeč 1,0m Cat.6A

The EasyLan saCon DualBoot Patch Cable is a high-performance S/FTP shielded patch cable designed for reliable 10 Gigabit Ethernet connections. With a length of 1.0 meter and Cat.6A certification, it supports bandwidths up to 500 MHz and is ideal for data centers, server rooms, and professional network installations.

Advantages

DualBoot push-pull connector design prevents snagging and protects the latch during installation and removal. S/FTP shielding (braid + foil) minimizes electromagnetic interference, ensuring stable data transmission. LSZH jacket reduces toxic smoke in case of fire, making it safe for use in public and commercial buildings.

Suitable for

• 10GBASE-T networks
• Data centers and server rooms
• Structured cabling systems
• PoE applications (PoE, PoE+, PoE++)

Key specifications

• Cable standard: Cat.6A (Class EA)
• Shielding: S/FTP (PiMF)
• Length: 1.0 m
• Colour: Red
• Connector: RJ45 Male to RJ45 Male with DualBoot push
• Conductor: Bare copper, AWG 26/7 stranded
• Jacket material: LSZH
• Wiring: TIA/EIA 568B
• Frequency: Up to 500 MHz
• Data rate: Up to 10 Gbps
• PoE support: Yes (PoE, PoE+, PoE++)
• Impedance: 100 Ohm
• Operating temperature: -20°C to +60°C
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Flame retardancy: IEC 60332-1-2
• Connector plating: Gold (50µm)

Recommendations

For optimal performance, use with Cat.6A compatible switches and patch panels. Ensure proper cable management to maintain bend radius and avoid signal degradation.
