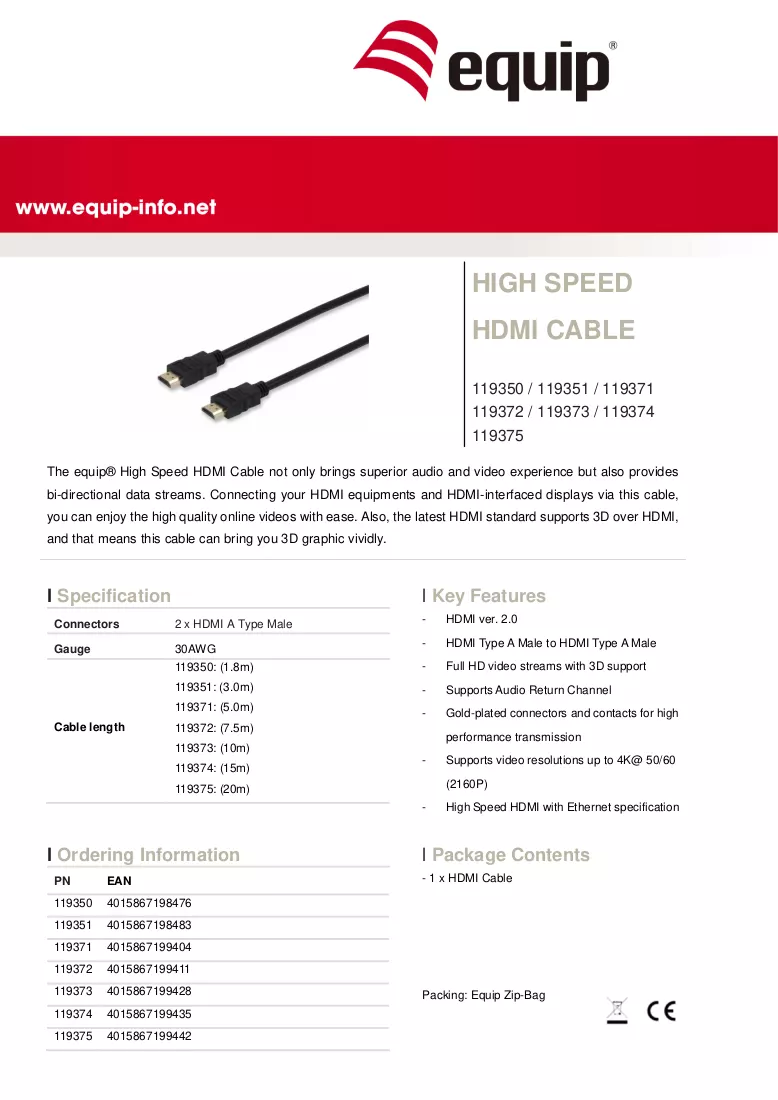

Equip kabel HDMI 2.0, 20 m

The Equip High Speed HDMI Cable (20 m) with HDMI Type A connectors on both ends supports HDMI 2.0 features including 4K resolution, 3D and an 18 Gbit/s data transfer rate. The cable includes gold-plated contacts and Audio Return Channel (ARC) functionality, offering a reliable wired connection between HDMI-equipped sources and HDMI displays for high-quality audio and video transmission.

Advantages

This 20 m Equip HDMI cable provides stable high-bandwidth transmission up to 18 Gbit/s and supports 4K and 3D content. Gold-plated contacts reduce signal loss and corrosion risk, while ARC simplifies audio routing between compatible TVs and audio systems. The black jacket and standard Type A connectors make it compatible with most consumer AV devices.

Suitable for

• Connecting Blu-ray players, gaming consoles or streaming devices to 4K TVs
• Home theater setups requiring Audio Return Channel (ARC)
• Long-distance AV runs where a 20 m cable is needed
• 3D-capable displays and content playback

Key specifications

• Cable length: 20 m
• Connectors: HDMI Type A (Standard) — both ends
• HDMI version: 2.0
• Maximum data rate: 18 Gbit/s
• Supported video: up to 4K resolution
• 3D support: yes
• Audio Return Channel (ARC): yes
• Contacts: gold-plated
• Colour: Black
• Weight: 1.586 kg

How to use

Connect one HDMI Type A connector to the HDMI output of your source device (such as a Blu-ray player, console or streaming box) and the other connector to the HDMI input on your display or AV receiver. Ensure both devices support the desired features (4K, 3D or ARC) and select the correct HDMI input on the display. For ARC use, enable ARC in both the TV and the audio device settings if required.

Recommendations

For best performance, avoid sharp bends and kinks along the 20 m length, keep the cable away from strong electrical interference sources, and ensure connectors are fully inserted. Use in-wall installation only with cables rated for in-wall use; otherwise, route externally or use conduit where applicable.
