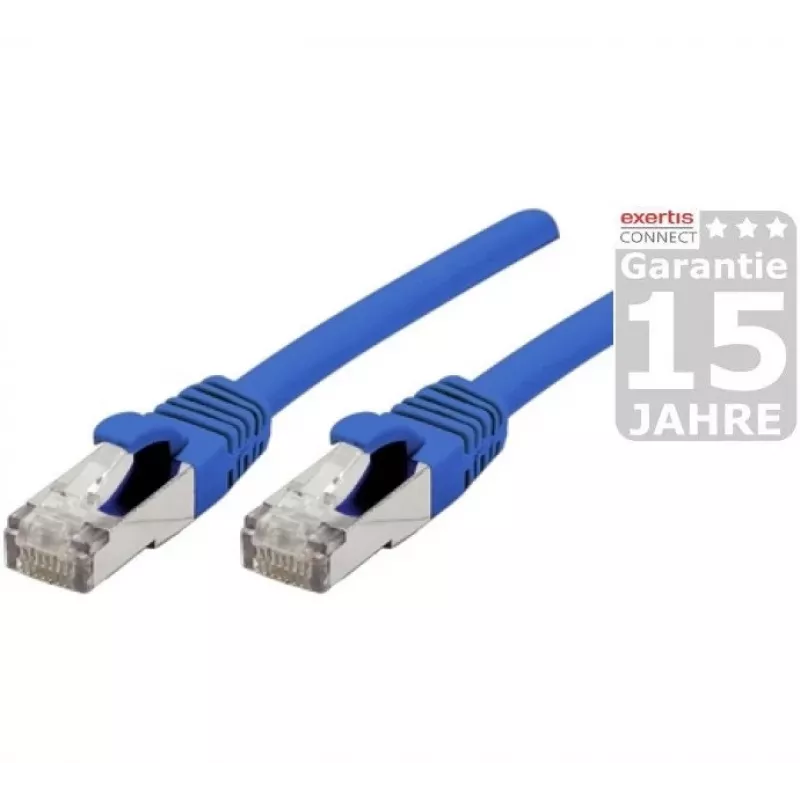

EXERTIS CONNECT Cat 6A S/FTP patch kabel, 5m, moder 858456

This EXERTIS CONNECT patch cable stands out with its slim bend protection, making it easier to route in tight spaces behind desks or patch panels. The S/FTP shielding with individually foiled pairs delivers clean 10 Gigabit Ethernet over 5 meters.

Highlights

• Cat 6A performance up to 500 MHz
• S/FTP (PiMF) shielding for minimal crosstalk
• Slim snagless boot for easy unplugging
• LSZH jacket for low smoke and halogen-free safety
• Stranded copper conductors, AWG 26/7

In daily use

The blue jacket helps with colour-coding network runs. RJ45 connectors on both ends follow TIA/EIA 568B wiring, so it works straight out of the bag with switches, routers, and patch panels. The stranded construction keeps the cable flexible even when moved frequently.

Full specifications

• Cable length: 5 m
• Cable standard: Cat 6A (Class EA)
• Cable shielding: S/FTP (PiMF)
• Connector type: RJ45 male to RJ45 male
• Conductor material: Copper
• Conductor gauge: AWG 26/7 (stranded)
• Jacket material: LSZH
• Bandwidth: 500 MHz
• Data transfer rate: 10 Gbps
• Wiring standard: TIA/EIA 568B
• Number of pairs: 4
• Outer diameter: 6.0 mm
• Operating temperature: -20°C to +60°C
• Flammability rating: IEC 60332-1

Final note

A dependable Cat 6A link for high-speed networking, with a slim profile that fits dense installations.
