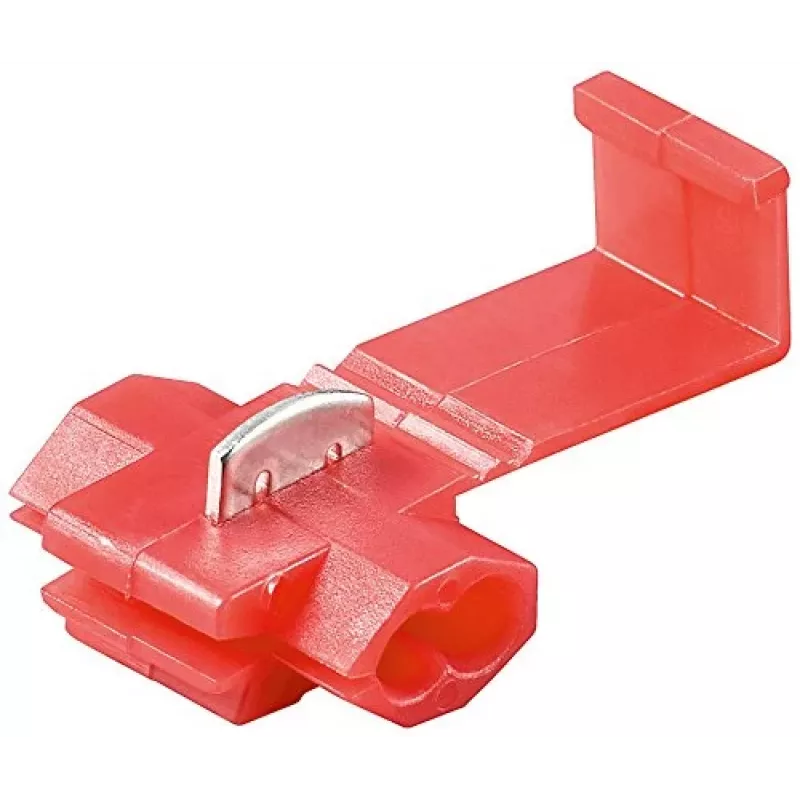

FIXPOINT Quick Splice konektor rdeč - 100 kosov (17014)

Quick splice connector for reliable electrical connections without wire stripping. The IDC technology allows fast and secure splicing of 0.5–1.5 mm² cables using standard pliers.

Advantages

No wire stripping required, saving time and effort. The red polypropylene housing provides insulation and easy identification. Tinned brass contacts ensure good conductivity and corrosion resistance.

Suitable for

• Automotive wiring repairs
• Marine electrical systems
• General low-voltage electrical installations

Key specifications

• Wire cross-section: 0.5 - 1.5 mm² (22 - 16 AWG)
• Max. voltage: 600 V
• Max. current: 10 A
• Operating temperature: -40°C to +105°C
• Pack of 100 pieces

Recommendations

For best results, use standard pliers to press the connector until the cap is fully seated. Single-use connector; not reusable.
