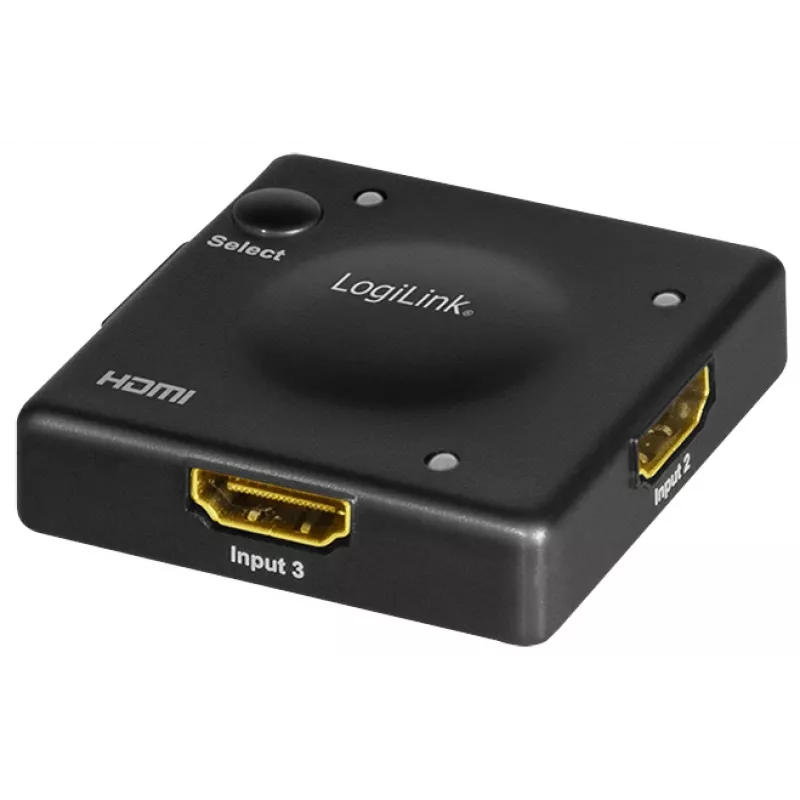

HDMI stikalo LogiLink HD0041

The LogiLink HD0041 Full HD HDMI switch lets you connect up to three HDMI source devices (for example, a video camera, Blu-ray player and game console) to a single HDMI input on your TV. It supports HDCP pass-through, CEC control and 3D signals, and carries multichannel audio formats including LPCM 7.1, DTS, Dolby Digital, DTS-HD Master Audio and Dolby TrueHD. The compact black ABS housing measures 50 × 50 × 15 mm and draws power from the HDMI connection, so no external power adapter is required.

Advantages

The switch automatically detects the active input and can also be switched manually via a front button. It supports Full HD 1080p at 60 Hz for sharp video playback and transfers high-resolution multichannel audio formats. Its small footprint and 5 W power consumption make it easy to integrate into existing AV setups without additional cable clutter.

Suitable for

• Connecting multiple HDMI sources to a single TV input
• Home cinema setups requiring multichannel audio formats
• Gaming consoles, Blu-ray players and cameras

Key specifications

• Model: LogiLink HD0041
• Inputs: 3 × HDMI
• Output: 1 × HDMI
• Maximum resolution/refresh rate: Full HD 1080p @ 60 Hz
• Audio formats: LPCM 7.1, DTS, Dolby Digital, DTS-HD Master Audio, Dolby TrueHD
• Features: HDCP pass-through, CEC, 3D support, automatic input detection
• Power: powered via HDMI, typical power consumption 5 W
• Material and colour: ABS, black
• Dimensions: 50 × 50 × 15 mm
• Weight: 0.029 kg
• Manufacturer code (MPN): HD0041
• EAN: 4052792062397

How to use

Connect up to three HDMI source devices to the switch inputs and connect the switch output to the TV HDMI input. The device draws power from the HDMI connection; no separate power adapter is required. During operation the switch will automatically detect the active source and switch to it, or you can press the front button to select a specific input manually. Ensure connected devices and the TV support the chosen resolution and audio formats.

Recommendations

For best results, use high-quality HDMI cables and ensure connected devices support HDCP and the required audio formats. If the TV or a source device does not supply sufficient power via HDMI, consider using an externally powered HDMI input on the TV or a powered HDMI splitter.
