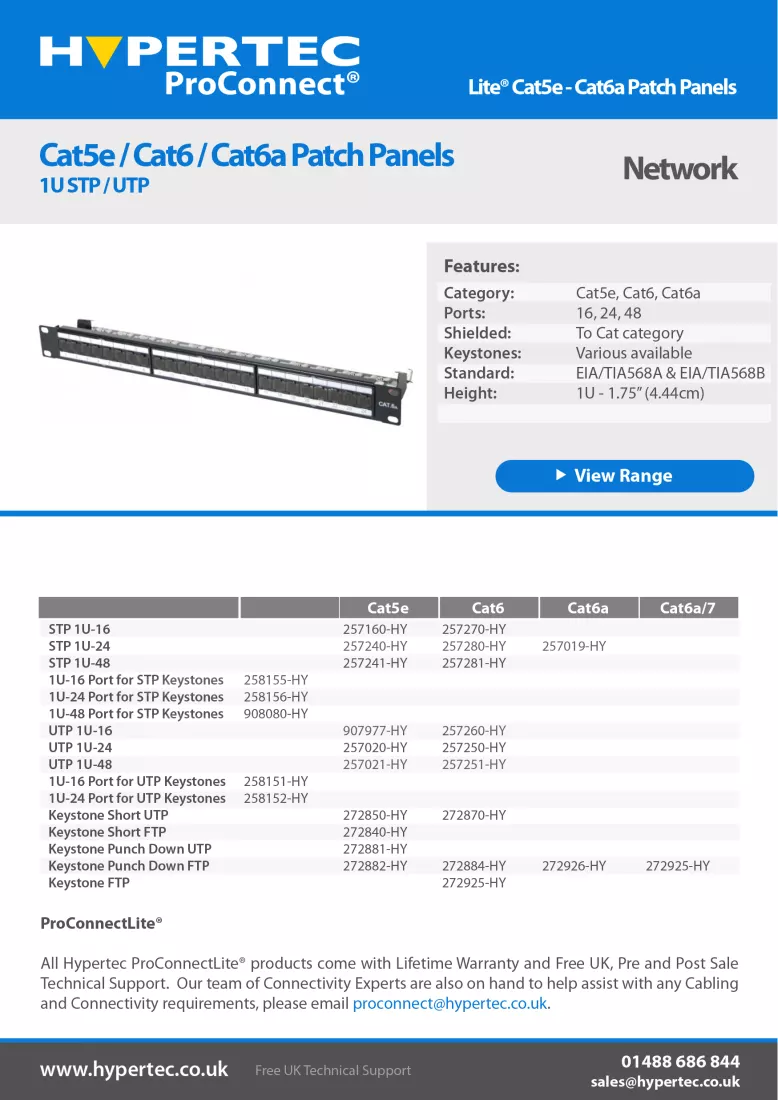

Hypertec 257260-HY patch panel 1U

The Hypertec 257260-HY Patch Panel 1U is a rack-mountable networking panel designed to terminate and organize Cat6a cabling in a 19-inch server rack. Built to accept sixteen ports in a single 1U height, the panel uses U/UTP construction to support high-speed data transmission while maintaining signal integrity. Its black finish provides a neutral, professional appearance and helps integrate the panel into existing rack setups in data centers, telecommunication closets, or enterprise network rooms.

Advantages

This 1U patch panel offers dense port placement for space-efficient rack usage and simple cable management. The U/UTP shielding minimizes crosstalk and external interference for Cat6a cabling, supporting reliable performance for high-bandwidth applications. The standardized 1U form factor and uniform port layout simplify installation, labeling, and future reconfiguration.

Suitable for

Key specifications

How to use

Mount the patch panel in a 19-inch rack at the desired 1U position using appropriate rack screws. Terminate Cat6a cables on the rear side of the panel following the T568A or T568B wiring scheme and the panel's punch-down guides. Route and secure cables using cable management accessories to maintain bend radius and minimize stress. Label each front port according to your rack documentation to simplify identification and troubleshooting.

Recommendations

To maintain performance, use certified Cat6a patch cords and ensure proper grounding where required for U/UTP installations. Keep cable bundles organized and avoid excessive bending; perform continuity and certification tests after installation to verify link performance.
