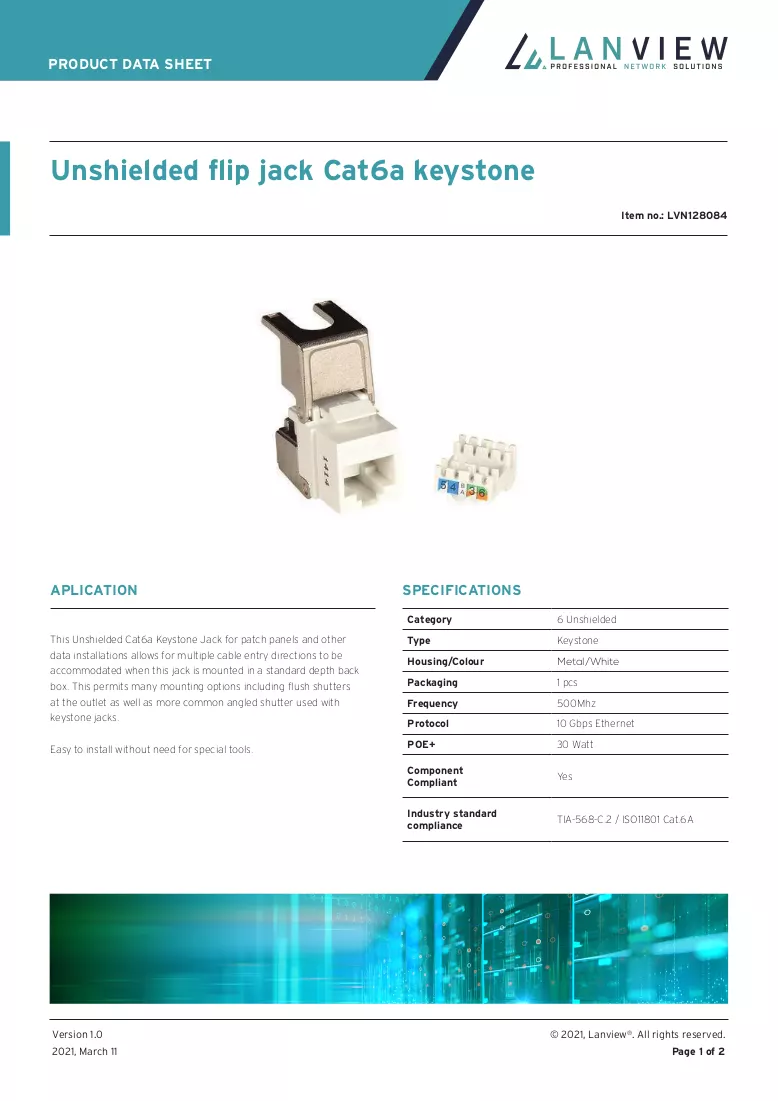

Lanview LVN128084 keystone modul

The Lanview LVN128084 is an unshielded Cat6 keystone module with a flat metallic finish and an integrated RJ-45 connector. Its compact dimensions (16 mm W × 31 mm D × 21 mm H) make it suitable for installation in standard-depth back boxes and patch panels where space and alignment flexibility are required.

Advantages

This keystone module supports multiple cable entry directions when mounted in a standard depth back box, allowing for either flush or angled shutter mounting. The flat construction and metallic finish provide a low-profile appearance and durability while the RJ-45 interface ensures compatibility with common Cat6 network cabling.

Suitable for

• Ethernet network connections using Cat6 cabling
• Patch panels and wall outlets in commercial or residential installations
• Installations requiring flexible cable entry directions or low‑profile modules

Key specifications

• Model: Lanview LVN128084
• Type: Unshielded Cat6 keystone module
• Connector: RJ-45
• Dimensions: 16 mm (W) × 31 mm (D) × 21 mm (H)
• Package quantity: 1 piece
• EAN: 5704174319009

How to use

Insert the keystone module into a compatible keystone wall plate, patch panel or mounting frame until it snaps into place. Route and terminate Cat6 cable according to standard wiring color codes for the RJ-45 connector, then test the connection with appropriate network testing equipment to verify performance.

Recommendations

For reliable performance, use Cat6 cables and follow standard installation practices. Avoid excessive cable bending near the module and ensure the module is compatible with the chosen shutter type (flush or angled) when planning the outlet finish.
