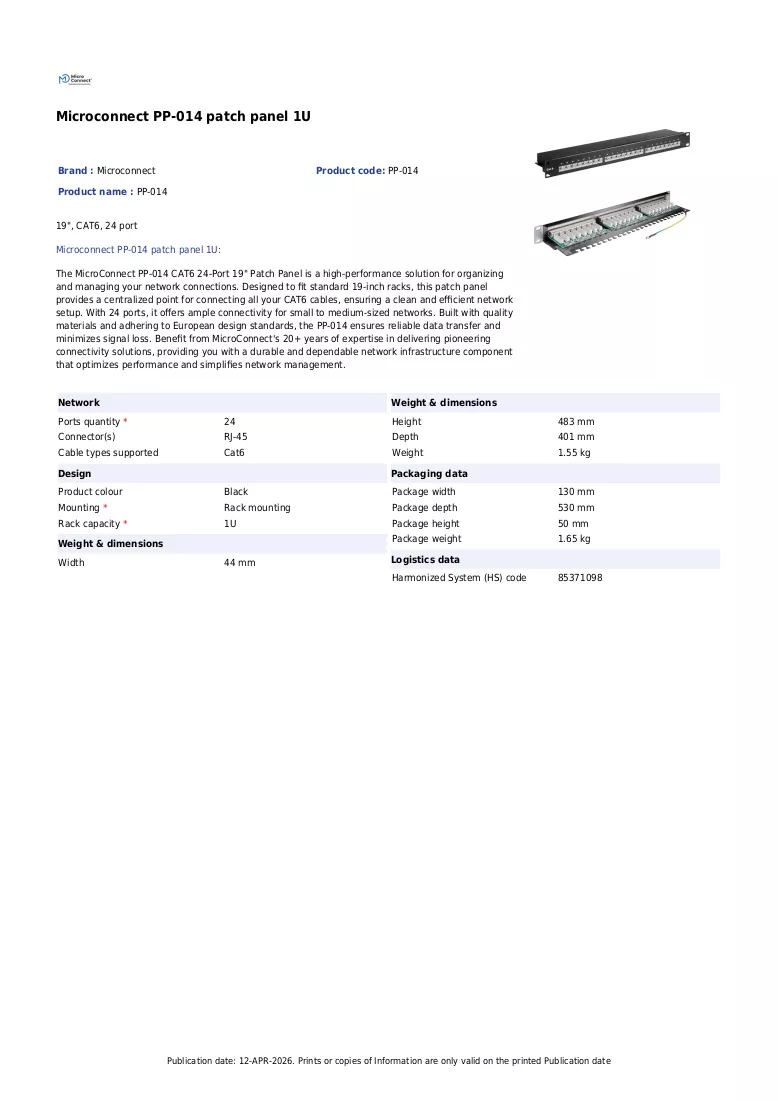

Microconnect PP-014 patch panel 1U

The Microconnect PP-014 is a 1U rack-mountable patch panel in black, designed for use with RJ-45 connections and Cat6 cabling. It fits standard 19-inch racks and provides 24 shielded LSA terminals for organized network distribution while keeping a compact footprint suitable for server cabinets and communication racks.

Advantages

Compact 1U design that saves rack space while offering 24 ports; shielded LSA terminals for improved signal protection; compatible with Cat6 RJ-45 connectors; durable black metal housing designed for reliable installation in 19-inch racks.

Suitable for

• Server rooms and data cabinets
• Office network cabling
• Structured cabling installations using Cat6
• Telecommunications and rack-mounted network equipment

Key specifications

• Ports quantity: 24
• Compatible cable type: Cat6 (RJ-45)
• Dimensions (approx.): width 44 mm × height 483 mm × depth 401 mm
• Product colour: Black
• Weight: 1.55 kg
• Rack size: 1U, 19-inch installation

How to use

Mount the PP-014 patch panel into a 19-inch rack using standard rack screws and cage nuts, aligning it within a single 1U space. Terminate Cat6 cables onto the 24 shielded LSA terminals according to the chosen wiring standard (e.g., T568A or T568B). Connect RJ-45 patch cables from the front ports to network devices or switches to complete the link.

Recommendations

For reliable performance, use Cat6-compliant cables and follow proper cable management practices to minimize bend radius and electromagnetic interference; label ports for easier maintenance and verify connections after termination with a cable tester.
