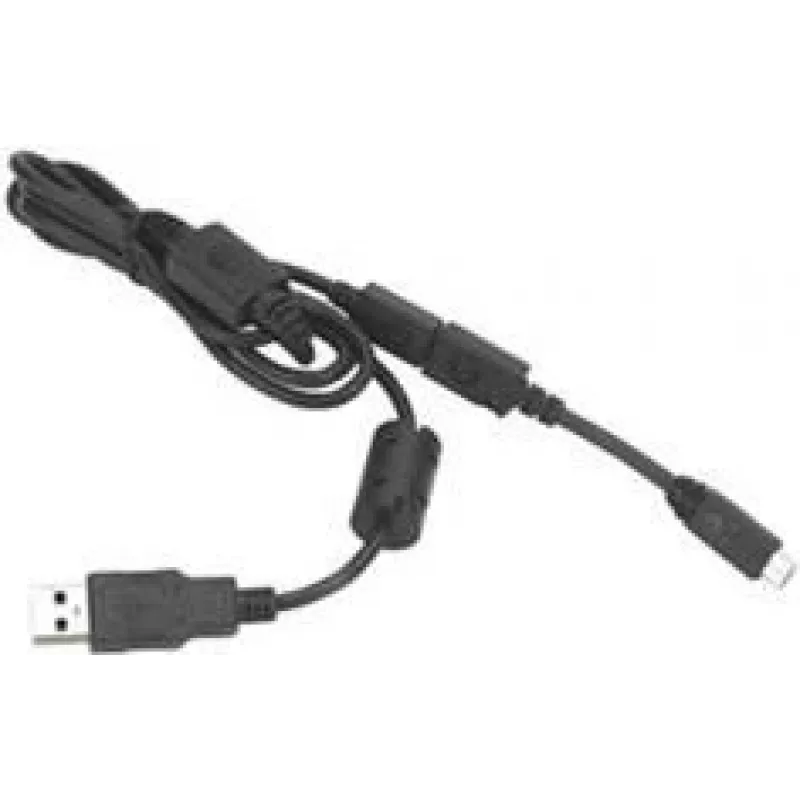

Motorola USB programski kabel za radijske postaje (188062)

Programming Motorola two-way radios often requires a proprietary interface, and without the right cable, firmware updates and parameter configuration become impossible. This USB programming cable connects directly to your computer, eliminating the need for a Radio Interface Box (RIB).

Who is it for

Radio technicians, fleet managers, and hobbyists who need to program compatible Motorola radios using Customer Programming Software (CPS).

Main features

• USB Type-A male to Motorola multi-pin connector
• RIB-less design for direct PC connection
• Integrated chipset for USB-to-serial conversion
• Double shielded (foil + braid) for reliable data transfer
• USB bus powered, no external power supply needed
• 1.2 m cable length

Specifications

• Cable type: USB to Motorola multi-pin connector
• Interface: USB 2.0 (backward compatible with USB 1.1)
• Connector A: USB Type-A male
• Connector B: Motorola 2-pin / multi-pin (proprietary)
• Length: 1.2 m
• Integrated chipset: Yes
• Driver support: Windows 11, 10, 8.1, 8, 7, Vista, XP (32/64-bit); macOS; Linux
• Power source: USB bus powered
• Material: PVC jacket, copper conductors
• Colour: Black
• Operating temperature: -10°C to 50°C
• Storage temperature: -20°C to 60°C
• Data transfer rate: Up to 480 Mbps (USB 2.0 theoretical)
• Shielding: Double shielded (foil + braid)
• Compatible radios: Motorola GP300, GP350, GP88, GP88S, GP68, GP2000, GP3688, GP3188, P110, P1225, P1225LS, CP040, CP140, CP150, CP160, CP180, CP200, CP340, CP360, CP380, PR400, PR860, PRO3150, PRO5150, PRO7150
• Software compatibility: Motorola CPS (Customer Programming Software)
• Plug & play: Yes (after driver installation)

Tips

Install the appropriate driver before connecting the cable. Ensure the radio is turned off before programming. Use only with compatible Motorola CPS software versions.
