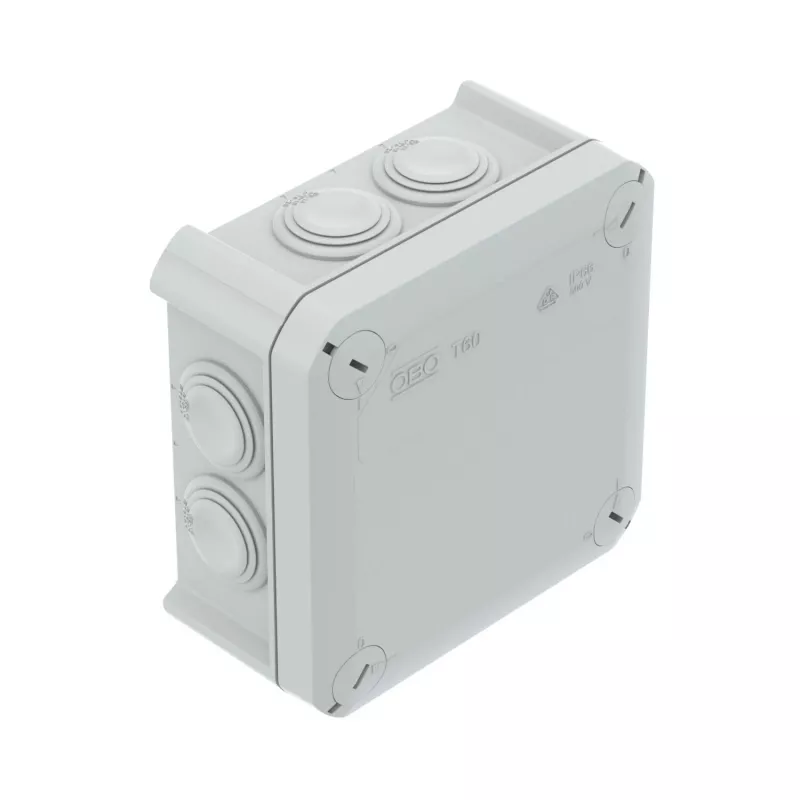

OBO T 60 kabelska razdelilna doza z uvodi 114x114x57 PP svetlo siva

Electricians and installers working on residential or commercial wiring projects will appreciate the OBO T 60 junction box for its robust construction and ease of use. This 114x114x57 mm enclosure in light grey polypropylene provides a secure, IP66-rated housing for cable connections, with seven self-sealing membrane entries that allow for quick and tool-free cable insertion while maintaining protection against dust and water.

Key specifications

• Material: Polypropylene (PP), halogen-free and UV-resistant
• Colour: Light grey (RAL 7035)
• Protection class: IP66
• Rated insulation voltage: 500 V
• Rated cross-section: 6 mm²
• Number of entries: 7 self-sealing membrane entries
• Mounting type: Wall or ceiling mounting via internal points
• Lid fastening: Snap-on
• Impact resistance: IK07
• Glow wire test: 750 °C (IEC 60695-2-11)
• Installation temperature range: -5 to +60 °C
• Operating temperature range: -25 to +60 °C
• Sealable with accessories
• Suitable for outdoor use
• Terminal block not included

Why choose it

The OBO T 60 combines durability with installation convenience. Its self-sealing membranes eliminate the need for separate grommets, saving time on site. The halogen-free, UV-stabilised polypropylene ensures long-term performance even in harsh environments, while the snap-on lid allows for quick access during maintenance. With IK07 impact resistance, it withstands mechanical stress, making it a reliable choice for both indoor and outdoor applications.

Ideal use cases

• Distribution of cables in residential and commercial buildings
• Outdoor installations requiring weatherproof enclosures
• Junctions where quick, tool-free cable entry is needed
• Applications demanding high impact resistance and UV stability

Good to know

The OBO T 60 is part of the T-series junction boxes known for their versatility and compliance with international standards. It can be sealed with optional accessories for enhanced protection. The box is designed for easy wall or ceiling mounting using internal points, and its compact size makes it suitable for confined spaces.
