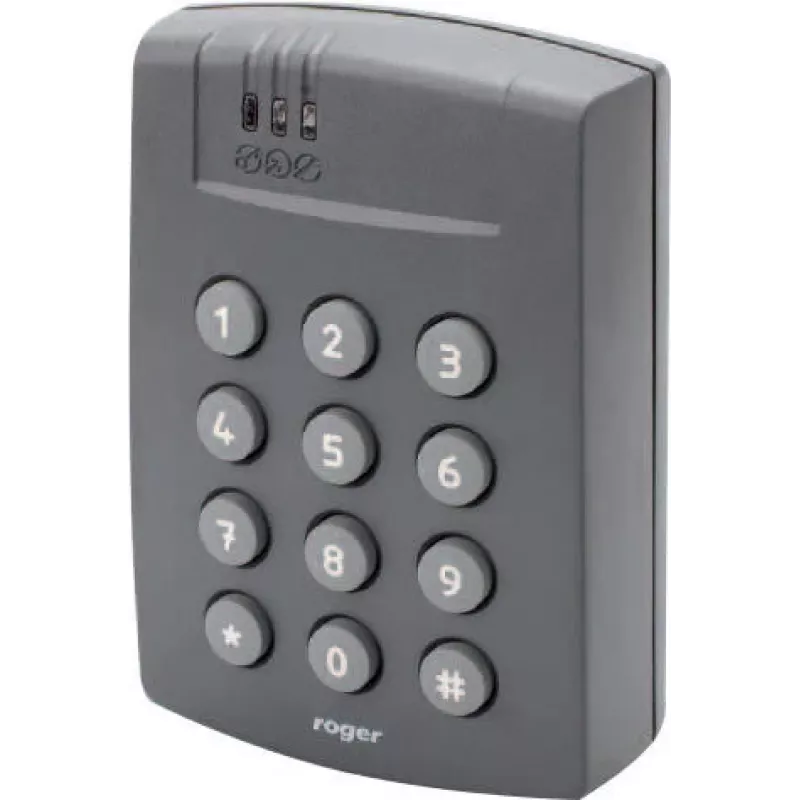

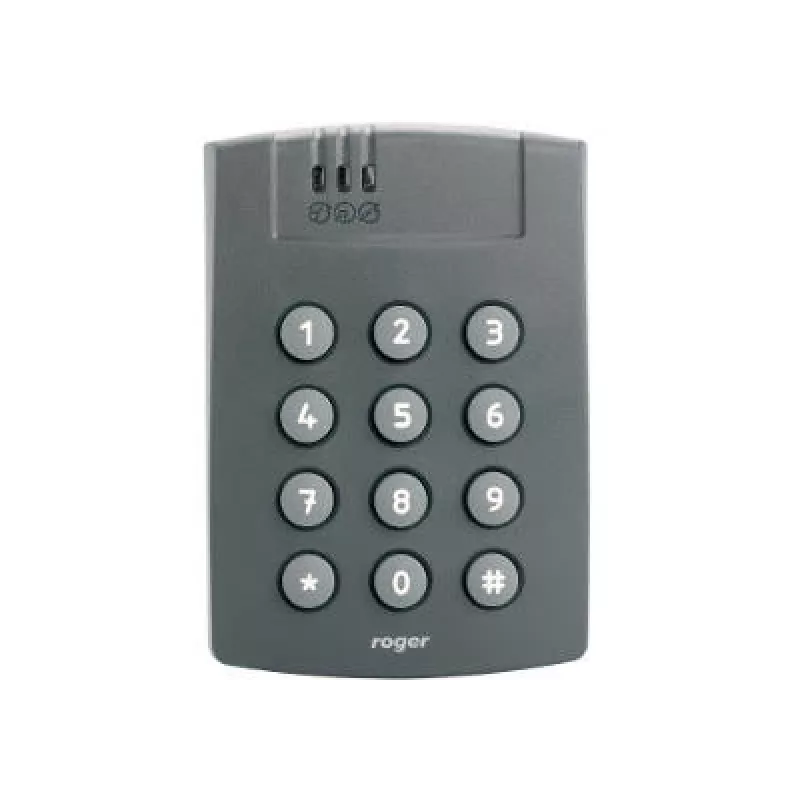

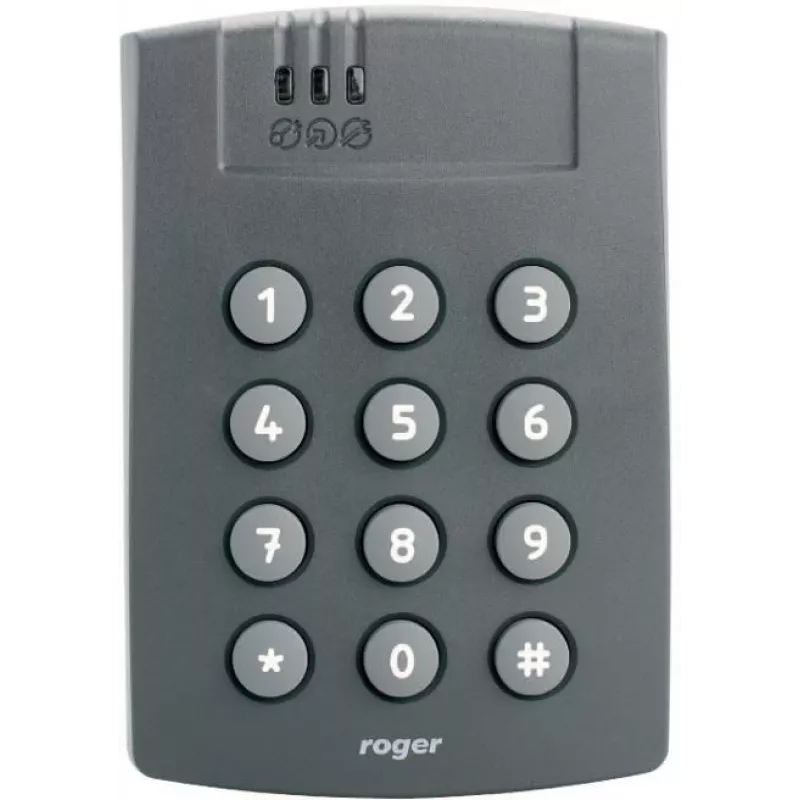

ROGER PR612 krmilnik dostopa

Controlling access to a single door can be a challenge without a reliable and straightforward solution. The ROGER PR612 Access Controller addresses this by providing standalone access control for up to 1000 users, using 125 kHz EM proximity cards or tags. Its built-in reader and support for an external Wiegand reader make it adaptable to various entry points.

Who is it for

This controller is ideal for small offices, residential buildings, or any facility needing basic access management without complex software. It is suitable for installers and end-users who prefer simple programming via a master card.

Main features

• Standalone operation with master card programming
• Built-in 125 kHz EM proximity reader
• Supports external Wiegand 26-66 bit readers
• Controls one door with lock relay (NO/NC)
• Two inputs: door contact and exit button
• Two outputs: lock relay and alarm output
• Event log capacity: 4000 events
• LED indicators and buzzer for status feedback
• Surface mount, ABS plastic housing

Specifications

• User capacity: 1000 users
• Event log capacity: 4000 events
• Built-in reader: 125 kHz EM Proximity
• External reader interface: Wiegand 26-66 bit
• Number of doors controlled: 1
• Inputs: 2 (door contact, exit button)
• Outputs: 2 (lock relay, alarm output)
• Lock relay type: NO/NC
• Power supply: 12V DC
• Current consumption: max 100 mA
• Operating temperature: -25°C to +55°C
• Protection class: IP20
• Housing material: ABS plastic
• LED indicators: Yes (status, access granted/denied)
• Buzzer: Yes
• Mounting: surface mount

Tips

For enhanced security, pair the PR612 with an external reader to separate the controller from the entry point. Use the alarm output to trigger an external siren or notification system on unauthorized access attempts.
