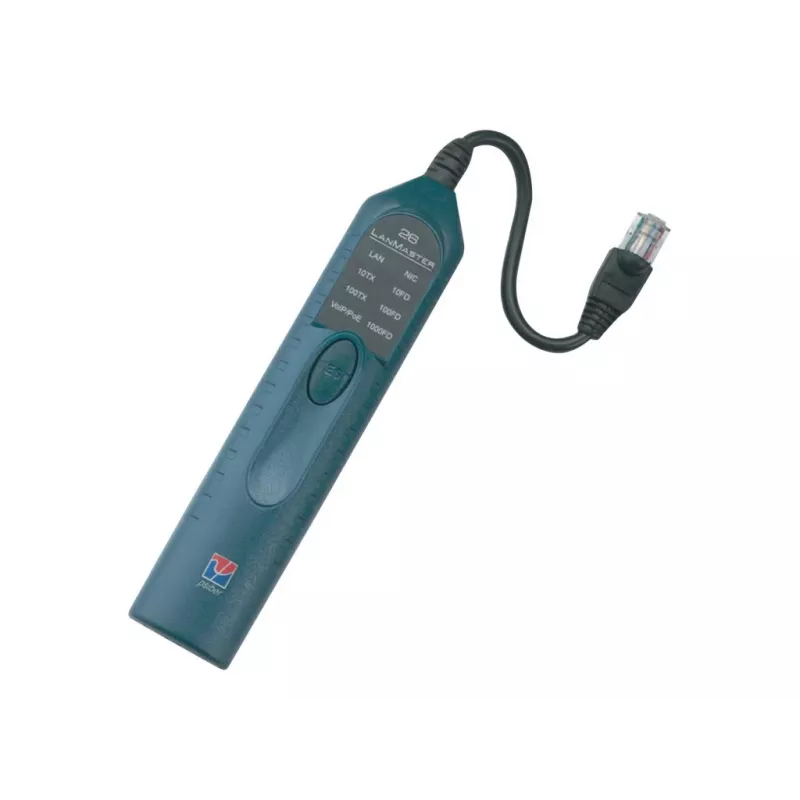

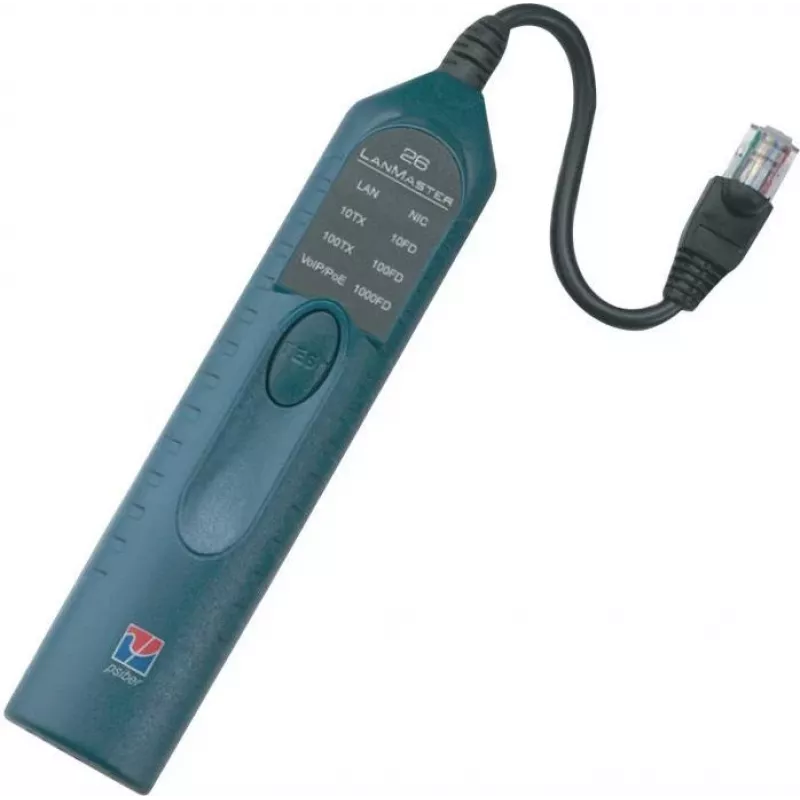

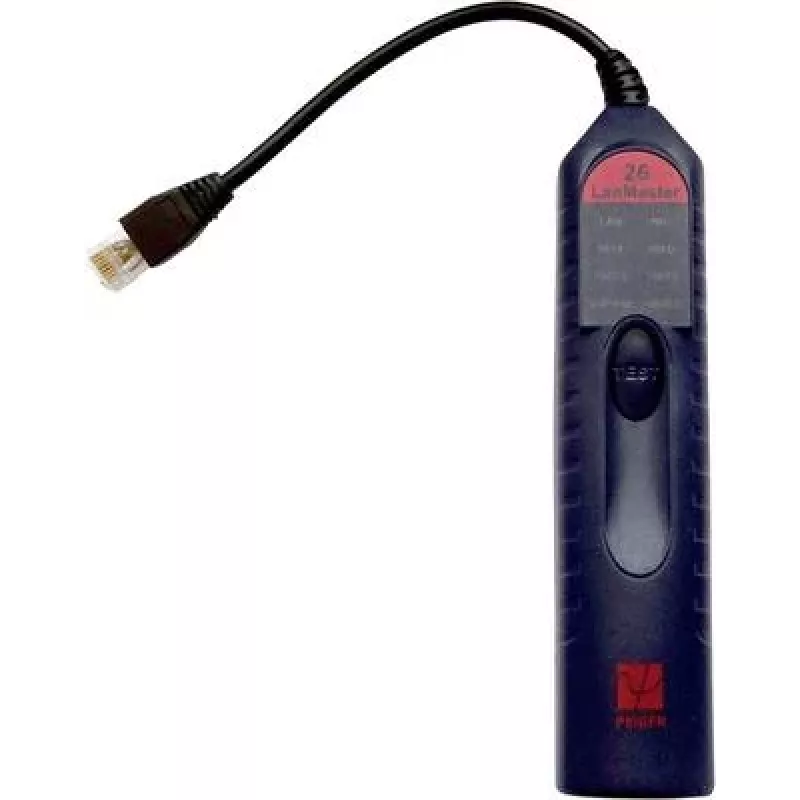

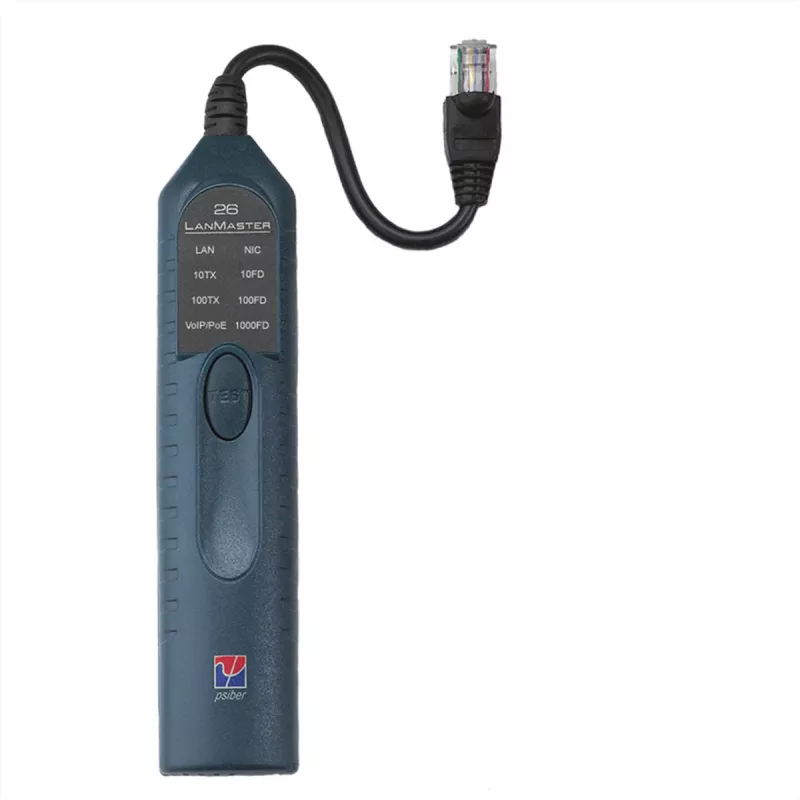

Softing LanMaster 26 tester omrežnih kablov 226001

Network installers and maintenance technicians often face the challenge of quickly verifying cable integrity, identifying wiring faults, and measuring cable length without hauling multiple bulky tools. The Softing LanMaster 26 solves this by combining essential cable testing functions into one handheld device. It tests UTP, STP, and coaxial cables with RJ45 and BNC connectors, providing clear wiremap results, length measurement up to 450 meters, and distance-to-fault detection using TDR. PoE detection identifies voltage and pair assignment for IEEE 802.3af/at, while the tone generator and port blink function simplify tracing and identification. The backlit LCD shows results in meters or feet, and the unit supports up to 8 remote ID units for efficient multi-drop testing. Powered by 4 AA batteries, it operates from 0°C to 50°C and stores from -10°C to 60°C.

Who is it for

This tester is ideal for network technicians, electricians, and IT professionals who install, troubleshoot, or maintain structured cabling systems in commercial or residential environments. It is equally useful for field service teams needing a reliable, portable tool for on-site certification and fault location.

Main features

• Tests UTP, STP, and coaxial cables with RJ45 and BNC connectors
• Wiremap with detection of opens, shorts, split pairs, reversals, and crosses
• Length measurement up to 450 m (1500 ft) with ±(5% + 1 m) accuracy
• Distance-to-fault (TDR) for locating cable breaks or anomalies
• PoE detection for IEEE 802.3af/at with voltage and pair identification
• Tone generator with multiple tones and selectable pairs for cable tracing
• Port blink function to identify switch ports
• Supports up to 8 remote ID units for efficient testing of multiple drops
• Backlit LCD with selectable units (meters/feet)
• Powered by 4 AA batteries

Specifications

• Supported cable types: UTP, STP, Coaxial
• Supported connectors: RJ45, BNC
• Length measurement range: up to 450 m (1500 ft)
• Length measurement accuracy: ±(5% + 1 m)
• PoE detection: IEEE 802.3af/at (voltage and pair identification)
• Display: backlit LCD
• Power source: 4x AA batteries
• Remote ID units support: up to 8
• Operating temperature: 0°C to 50°C (32°F to 122°F)
• Storage temperature: -10°C to 60°C (14°F to 140°F)

Tips

For best accuracy, calibrate the tester to the cable's velocity of propagation if known. When testing PoE, ensure the remote unit is disconnected to avoid interference. Use the tone generator with a standard inductive probe for tracing cables through walls or bundles.
