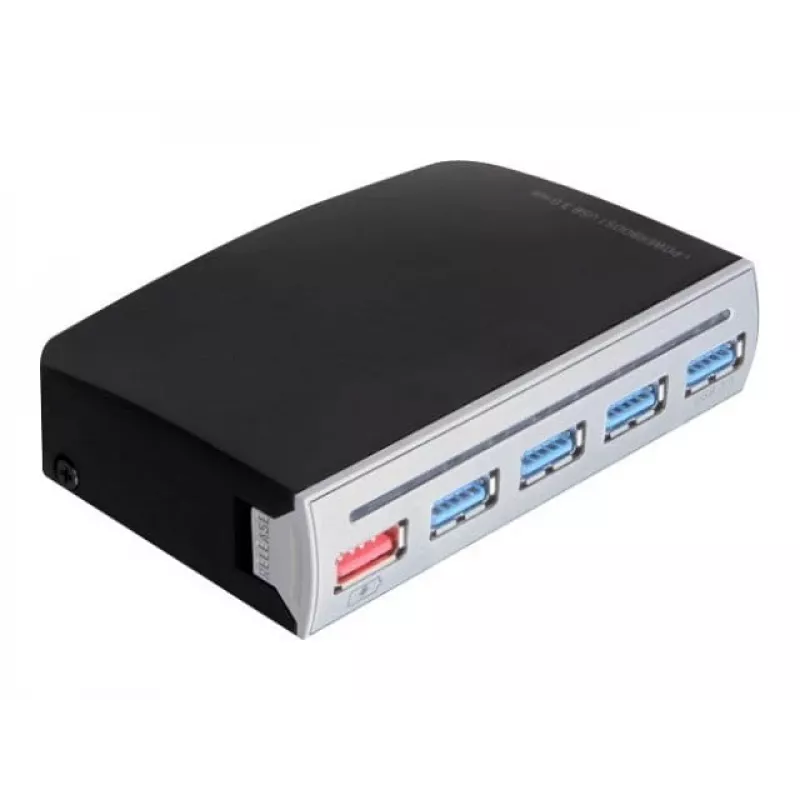

Vmesniško vozlišče DeLOCK 61898

The DeLOCK 61898 Interface Hub expands a PC or notebook with four additional USB 3.0 ports plus one dedicated USB power port. It supports USB 3.2 Gen 1 data transfer rates up to 5000 Mbit/s and can be installed externally using the included power adapter or internally in a 3.5" drive bay. Three interchangeable front panels in black, silver and beige are included to match different system colours. Compatible operating systems include Windows XP, Vista, 7, Mac OS 10.5/10.6 and Linux. Dimensions: 70 mm (W) x 101.4 mm (D) x 25.9 mm (H).

Advantages

The hub provides high-speed USB 3.2 Gen 1 connectivity for fast file transfers and multiple device connections while remaining backward compatible with older USB standards. Its dual installation options—external with the supplied power adapter or internal in a 3.5" bay—offer flexible placement. The additional dedicated power port allows powering USB devices that require external current. Interchangeable front panels permit simple visual adjustment to the system front.

Suitable for

• Adding multiple USB ports to a desktop PC or notebook setup
• High-speed data transfer between external drives and PC
• Powering USB devices that need extra current via the dedicated power port
• Installation in a 3.5" drive bay or external placement on a desk

Key specifications

• Model: DeLOCK 61898
• Interface: USB 3.2 Gen 1 (USB 3.0 compatible)
• Max data rate: 5000 Mbit/s
• Ports: 4 × USB 3.0 data ports + 1 × USB power port (total 5 ports)
• Compatibility: Windows XP, Vista, 7; Mac OS 10.5, 10.6; Linux
• Dimensions: 70 × 101.4 × 25.9 mm (W × D × H)
• Includes: power adapter, USB 3.0 cable, 3 front panels (black, silver, beige)

How to use

For external use, connect the hub to mains power using the included power adapter and plug the USB 3.0 cable into an available USB port on your computer. For internal installation, mount the hub into an empty 3.5" drive bay, connect the hub to the PC power supply with the provided power cable and route the USB 3.0 cable to an internal or external USB header as required. After connecting, the operating system should detect the hub automatically; install drivers only if your OS prompts for them.

Recommendations

To achieve full USB 3.2 Gen 1 speeds, connect compatible USB 3.x devices and use a USB 3.0 port on your computer. Use the dedicated power port when connecting devices that require additional power, such as external drives or charging devices. Choose the front panel that best matches your system to maintain a clean appearance.
